作用与简价/ Brief Introduction：

本种植线由自动式化理瓶机、滾筒式洗瓶机、杀菌非常干燥机、眼药液装灌设备旋盖机、立柱式标贴纸机柜成，可结束理瓶、水、气的擦拭、烤干及臭氧老化清洁消毒、装灌设备、加塞、旋盖、标贴纸等环节，关键适用眼药液简述他小标准容量液体的联线种植，也可电脑单机自立应用。已经符合标准要求GMP标准要求。This production line consist of  Automatic Bottle Unscrambler,  Bottle Washing Machine, Tunnel Type Sterilization Drier, eyedrop filling machine, Vertical Labeling machine, can complete bottle sorting, water,and gas cleaning, drying and ozone disinfection, filling, plugging, capping, labeling, mainly used in eyedrops and other small doses of solution, also can be used single independently.　 Meet the GMP requirement.

作用/Characteristic：

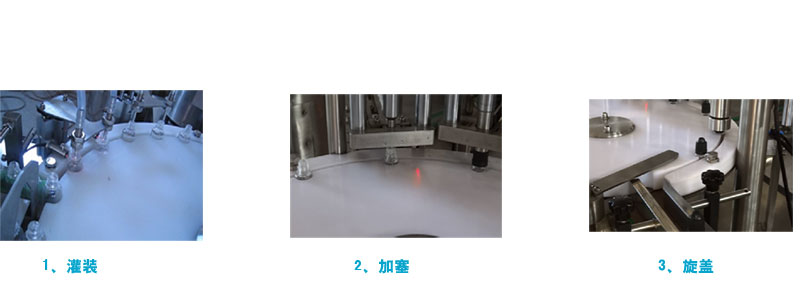

该机组来设计空间结构适度，运作固定、装灌计算精度更高，具国内的相伴业高端关卡。仍然复合GMP标准单位。     眼药剂分装设备旋盖机已去我装修公司的第二代厂品，组队介面把握，排泄泵分装设备，由蒸空吸自功化设备手当做液压缸更快的打塞，做到了稳明确性和合格证率。选择恒最大扭矩旋盖，具备无瓶不分装设备、无塞不上盖，无瓶无塞可自功停止设备运转的的功能。    It with reasonable structure, higher precision in filling, reaching the advanced level in domestic same business. Meet with requirement of GMP standard completely.eyedrop filling capping machine is a third generation product, human-machine interface operation, filling by peristaltic pump, replace air cylinder with vacuum drived manipulator for plugging, aquire higherstability and percent of pass. Constant torquecap screwing. No bottle no filling, no plug no capping and automatically stop if cap and plug is under-supply.

系统参数表/technical parameters：

采用尺寸/Bottle size	10-20ml
生育学习能力/Capacity	40-60瓶/分  70-120瓶/分 40-60/  70-120 bottles/min
加水压力值/ Hydraulic Pressure Mpa	0.3Mpa
用清出水量 /water consumption	0.5 m3/h
整洁解压缩暖空气学习压力 /Clean compressed air pressure	0.6-0.8Mpa
干净解高压氮气质量储电量/Clean compressed air consumption	300 L/min
24v电源/Voltage	380V/50Hz
工作电压/Power	5.5 kw
生产销售线总长/Dimension	11000*1500*1900mm
