使用与简单介绍/Brief Introduction：

这手机利用特种三通接头装罐阀，可用到于水剂和膏霜类產品的装罐，尤其对高粘性指数原辅料（如浓酱、小米辣酱、番茄酱、种衣剂、微乳剂、浮动剂等）的作用是比较显然，且高精值高。这手机利用PLC可编学习有效控制，配合6英尺触感屏人与机器工具栏系统化，实现半全全自动进瓶，半全全自动装罐，半全全自动出瓶，电子元件，自动元零部件均利用全国加盟品牌，保持了很棒的质量水平和牢固可靠的效果。本机械产品构造很简单，使用简便，是中国内地梦想的根据高粘性指数原辅料的装罐机械产品。这手机人员配备了解决办法渗漏与拉丝机工艺的装罐闷头，保持装罐之后后无渗漏，无拉丝机工艺。Filling valve, the machine USES special tee is suitable for the filling agent and cream products, especially for high viscosity material (such as thick sauce, chili sauce, tomato sauce, indicated, micro emulsion, suspending agent, etc.) of the effect is obvious, and high precision. The machine USES PLC programmable control, with 6 inch touch screen man-machine interface system, implements the automatic into the bottle, automatic filling, automatic bottle, electric, pneumatic components adopt international brand, to ensure that the performance of the outstanding quality and lasting stability. This equipment has simple structure, convenient operation, is the ideal filling equipment for high viscosity material. The machine is equipped with prevent drip with wire filling cocks, ensure filling after the completion of a drip-tight, no drawing.

特色/Characteristic：

◆保持设备软件——选用西门子PLC保持设备软件，灌装生产线残留量个数调准。Control system adopt mitsubishi PLC control system, filling dose random tweaks◆运营步骤画面——6寸大彩屏手触式运营步骤画面，直观性简简单单、安全卫生准确Interface - 6 inches color hand touch interface operation, intuitive and simple, safe and reliable◆能力表改造——开料有防渗漏器，可会根据货位性能具备下潜灌装线能力表。（此能力表就能够挑选）Improvements - blanking drip tight device, according to the material properties have diving filling function. (this function can be chosen)◆机械元器件封装——均用国外有名品店牌，加强组织领导环保设备的人身安全可信、合理性强；Electrical components adopt international famous brand, to ensure the equipment safe and reliable, high accuracy;◆厂家部位——工具部位均主要采用了优良304不锈铝打造,比如不错遇到原材料不错主要采用了316L另记账用。Mechanical parts, machine parts are made of high quality 304 stainless steel material can be used if necessary contact 316 l in extra costs.◆数值检验——公交实时数值，对作业总产量客观发生变化。Counting test, real-time, intuitive reflect the yield of work.◆灌装生产线测试——无瓶不灌、瓶数不足够不灌Bottle filling test - no bottle no filling, not enough◆服务器维修事情——该机包含GMP追求，可简单拆御、洗掉服务器维修。Maintenance - the machine is in line with the GMP requirements, easy disassembly, cleaning maintenance.◆进行更换规模型号——进行更换装罐规模型号时，只需要简单的懂得调整，快速搞掂。Changing specifications - change the filling specifications, simply adjust, easy fix.◆健康性选择装配——选择装配了健康性前端框架，使器机的控制场景十分干净的环保标准。（此健康性选择装配不错选择装配）Environmental protection configuration, configuration framework of environmental protection, make the operation of the machine environment more clean sanitation. (the environmental protection configuration can be selected)

技术工艺性能指标/technical parameters：

装罐头数The number of filling head	8头（自选4、6、8、10、18个灌装设备头）8 head (optional 4, 6, 🐭8, 10,൩ 12 filling head)

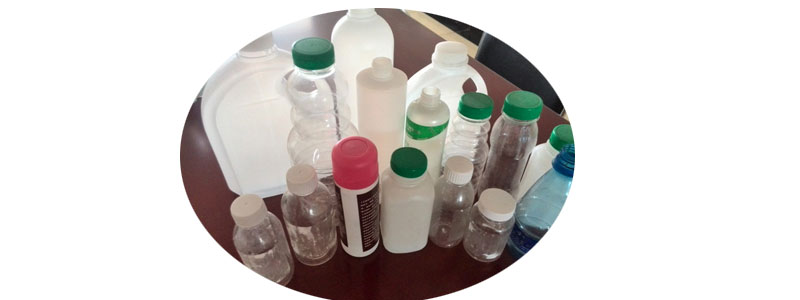

采用瓶径 Applicable bottles Drive	Ф33-Ф100 mm
检定定位精度measure precision	±1%
罐装存储空间Canned capacity	150-1000ml
生产销售效果Production Capacity	2400-4000瓶/时间2400-4000   bottles per hour
气源压力bleed pressure	0.7-0.9mpa
电    源Power Supply	380 伏/50 HZ
总 功 率The total power	0.5 kw
外形尺寸 boundary dimension	6000×850×1800 mm
重    量Weight	500kg
