使用用途与简洁：/Purpose and introduction

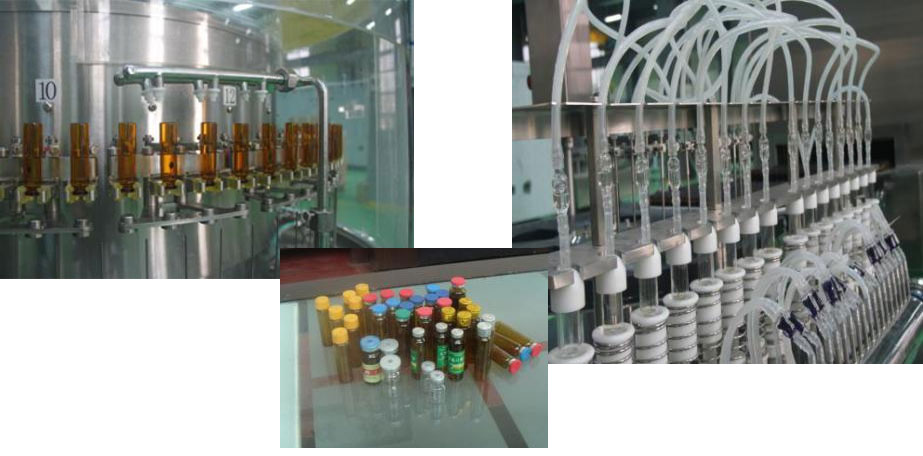

服食液洗烘灌轧互通线由旋转式高周波波洗瓶机、隧洞式内循环法 循环法消毒干燥箱、服食液装灌轧盖机等分解成，可以于 5-30ml 等有差异规 格服食液瓶的生育制造。可已完成对保健药品生育制造中安瓿瓶淋水、高周波波除污、冲水、充 气、干燥消毒、水冷却、装灌、轧盖等工艺流程步骤之一的互通启动。Oral liquid washing drying filling and rolling line by the vertical ultrasonic bottle-washing machine, tunnel sterilization oven hot wind cycle, oral liquid filling and other components of the rolling machine, suitable for 5-30 ml different gauge, etc Oral liquid bottle production. Can be done for ampoule bottle pour water in drug production, ultrasonic cleaning, flushing, filling gas, drying sterilization, cooling, filling and rolling cover joint operation of the process steps.

优点和缺点:/characteristic

◆洗瓶机用到机械性手夹瓶，适用人群四种型号的罐子；Bottle washer adopts manipulator clamp bottle, is suitable for a variety of specifications of the bottle;◆洗瓶选择水汽喷针导杆定位进到这一领域表格具体方法，的洗涤功能好，降低能源技术。并有针架防会抖器，升高喷针进到这一领域表格塑料瓶的更准度，减小断针情况造成；Reciprocating mixer washing bottle with water spray needle track insert way, cleaning effect is good, save energy. And is equipped with needle shake device, improve the accuracy of injection needle inserted into the bottle, reduce breakage phenomenon;◆洗瓶全部热气输送管、喷针是完全独立自主分离，禁止了相交破坏，符合标准GMP标准规范规范要求；Mixer washing bottle the water pipe, injection needles completely separate, to avoid the cross contamination, in line with the GMP requirements;◆洗瓶机进瓶螺栓前可以加装部件实现响应块，有保障螺栓，削减碎瓶效应Pieces into the bottle inside the screw before adding buffer block, protect the screw, reduce broken bottles◆洗瓶机出瓶用整体性进口量关联带，连入拨块输送管服食液，自动运行安稳稳定可靠In pieces out of the bottle inside the whole import synchronous belt, the connection piece of conveying liquid, stable and reliable running◆恒温干燥箱适用红外线电加导散热器，不锈钢材质电加导散热器双重电升温温暖不规则性好；Oven using infrared heating tube, stainless steel heating tube double heating temperature uniformity is good;◆包装轧盖机自选配陶瓷图片泵、不锈钢材料泵；In pieces filling rolling machine optional ceramic pump, stainless steel pump;◆灌装生产线无瓶止灌，无瓶不轧盖功效。Pieces filling without bottle filling, no bottle no rolling function.◆整线选择PLC总调控、直流三菱变频器、接触现示屏屏调控工艺，作业保持稳定安全。接触现示屏屏可现示各单机手游的作业动态，各调控点的水管打压、压力、压力、温度表等现示，各旋钮动态和内部错误码率现示，内部错误码率自行测试和内部错误码率分析一下及避免的方法。使一整个研发历程提高自然化调控，联线享有三机电气和平配置，绝对研发均衡性安全。The whole line adopts PLC control, inverter, touch screen control technology, stable and reliable running. Touch screen can display the running state of each units, each control point of the water pressure, air pressure, air pressure, temperature, etc, according to the switch state and fault display, fault self-diagnosis and fault analysis and elimination method. The whole production process to achieve automatic control, on-line has the compressors control balancing device, ensure production is balanced.结合老客户的还要，还可供选用：According to the needs of customers, but also available for selection:◆simens、施耐德开关、三菱PLC、台达等加盟品牌掌控系统性；Pieces of Siemens, schneider, mitsubishi, Taiwan brands such as control system;◆水、气心理压力、水温表及多普勒彩超波难度、颗粒物a粒子、流速免费在线检验、报警功能、记载、缩印软件。Pieces of water, gas pressure, water temperature and the intensity of ultrasonic, dust particles, wind speed on-line detection, alarm, record and print system.◆ORABS、CRABS、灭菌丢开器设备。Mixer ORABS, CRABS, aseptic isolator system.

技术应用技术指标：technical parameters

符合规格参数Cutting   dimension(ml)	5-25
生产能力production capacity(pcs/min)	350
装罐精确度Filling accuracy(%)	≤ ± 2.5
灌装设备头数Fillingheads	16
轧盖头数Number of rolling   curtain	单刀20头
轧盖适合率Rolling cover   percent of pass(%)	≥ 99
总重量total weight(kg)	7500
外形尺寸boundary dimension(mm)	9920 × 2003 × 2150
