应用与筒介/Brief Introduction：

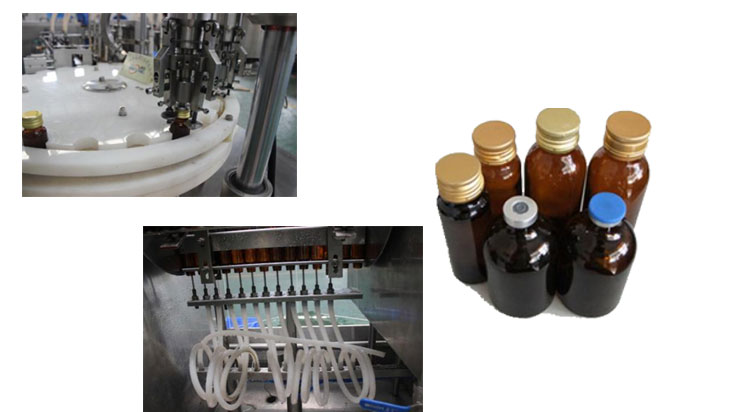

本产生线适用30ML及以上冲剂液的装灌产生，由供瓶机、滚筒式洗瓶机、蹭蹭蹭蹭式装灌轧（旋）盖机、立试贴标签签机等装备组成了，可全自主结束理瓶、洗瓶、装灌、上盖、旋（轧）盖、贴标签签等环节。其主要用作医药、物品、有机化工的的各项溶剂原材料的装灌联合产生。本产生线彻底相符合GMP条件。This production line is suitable for more than 30 ml of oral liquid filling production, by for bottle filling machine, roller bottle washing machine, straight-line rolling (spin) cover machine, vertical labeling machine and other equipment, can finish automatically unscramble bottle, bottle washing, filling and cover, cover and label (pad). Mainly used in pharmaceutical, food, chemical industry production of all kinds of liquid filling material of the linkage of. This production line in full compliance with GMP requirements.

优势特点 /Characteristic：

◆的外表布料材质为304不锈钢材质材质的，装灌部位采316L不锈钢材质材质的，合乎GMP国家标准。Outer material is 304 stainless steel,and the material of filling part is 316L stainless steel, it complies with GMP regulation ◆可应用多尺寸生育。can be situable for several bottle specs.◆运营稳定性高，躁声小，装灌准确度 。Stable running,low noise,precise filling.◆破瓶率低，机器设备通过率高，碳排放量少。low bottle breakage ratio,high qualified product ratio,low energy consumption.◆整套种植线可手机单机掌控和茶叶连锁掌控。The whole line can single machine control or interlock control.

技巧性能参数/Main Technical Parameters：

常用规格为Filling Volume	30-150ML
灌装生产线头数Productivity	中速4头             &n𓆏bsp;稳定8头 4 at low speed         &n🎃bsp;   high speed 8
制造的能力	慢速30-50瓶/分     高70-100瓶/分 30-50bottles/min  70-100bottles/min
灌装设备定位精度Filling Precision	≤±1%
旋盖率Capping Rate	≥99%
24v电源Power Supply	220V/50Hz
工作功率Power Supply	2.5kw
出产线总长Dimension	7500*1000*1700MM
