使用用途与简单/Brief introduction：

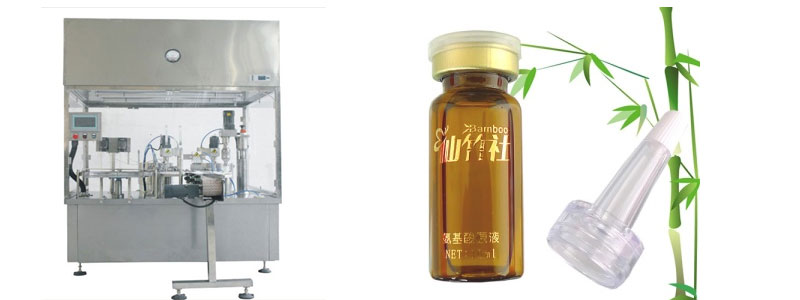

远程服务器是在人才引进和消化吸收其他国家好技术应用的框架上，我装修公司专业技术化研发部的市场上专业技术造成西林瓶的装罐、上塞、旋（轧）盖机。远程服务器运用德国全原产高的精密度封闭性式凸轮机构量程卡位器，的精密高，启动牢靠，用的平均期限长。该量程器机构十分简单，常期用的不须抢修。该机器主耍可应用在各样小摄入量液态物质的灌装加工线、压塞及旋（轧）盖，如单方精油、肌注剂等。很广应用在食品厂、制药厂、热相关行业及研究业务领域。该机器既可单机游戏加工，又可与洗瓶机、晾干机等机器分为协同加工线。完整符合符合特殊要求国内GMP符合特殊要求。该机器需要利用大家符合特殊要求升到电气成套设备。NFGX-5/50 Automatic Vial Filling&rotation (rolling) machine is built in the absorption of foreign advanced tecnology, based on independently developed by the company ,It is the domestic leading level.This machine is suitable for a variety of small doses of liquid filling&capping such as oil, injection . Widely used in food, pharmaceutical, chemical industries and scientific research.  Single machine can produce, but also with washing machine, dryer and other equipment linked production line. Full compliance with the GMP requirements. The machine according to customer requirements to upgrade the electrical configuration

共同点/Characteristic:：

◆电脑画面更改、基本操作直接方便快捷、PLC调节，装量*。Human-machine interface settings, an easy and intuitive, PLC control, the amount of precision equipment. ◆变頻操纵、种植快慢符合各种设定、自然数值。Frequency control, the production rate be adjusted automatically count  ◆半自动断电工作，无瓶不罐装。No bottle no filling.◆园盘wifi定位式包装，稳固可以信赖。Disc positioning filling, stable and reliable.◆高可靠性强，精密度气缸量程计掌握，分析*。High-precision cam meter control, precise positioning.◆分为SUS304及316L不透钢制造厂，完成合适GMP耍求。SUS304 and 316L stainless steel, full compliance with GMP requirements.

科技性能参数/ technical parameters：

装量范围内Filling volume	5-50ml
装量出现偏差的原因loading error	≤ ±1%
旋（轧）盖达标率率 Rotation (rolling) Cover pass rate:	≥99%
加工实力Production capacity	30-60瓶/分 钟  🎶;低速档 70-100瓶/分 钟     公路 30-60 bottles / min  70-100 bottles / minꦕute (h𓆏igh speed)
压塞率Tamponade rate	≥99%
开关电源 Power	380V/50Hz
工作功率Power	2.0 kw
刷卡机净含量Net weight	600 kg
外表长度 Dimension	2000*1000*1500mm
