的用途与简绍/Brief Introduction：

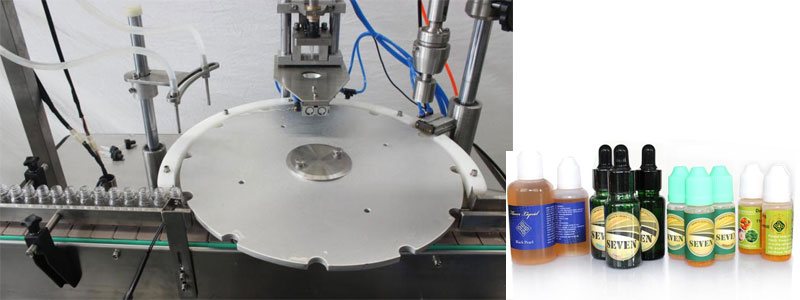

该机常采用2-30ML种种原料的椭圆形扁形塑胶片或夹层玻璃制瓶的眼麻醉药包装.该机由高要求气缸精度等级学校提拱数据精度等级等分盘位置上塞上盖;降强度气缸转动系统提拱数据旋盖头的升缩;恒最大扭矩旋盖;扭动泵剂量包装;手触屏管理.无瓶不包装,不带内塞,外盖.具位置精密,转动系统稳定性,自我保护小盖,剂量准.方法简单的等显著优点。This machine is mainly available to fill eye-drop into various round and flat plastic or glass bottles with the range from 2--30ml.High precision cam provides a regular plate to position, cork and cap; accelerating cam makes capping heads going up and down ;constant turning arm screws caps; creepage pump measures filling volume; and touch screen controls all action. No bottle no filling and no capping. If there is no plug in the bottle, it must not cap until having been detected plug in the bottle. The machine enjoys high position accuracy, stable driving, precise dosage, and simple operation and also protects bottle caps.

显著特点/Characteristic：

◆微我的电脑调节、装量精密、工作便捷。Man-machine dialogue system setting,visual convenient operation ,accurate filling level。◆主机电源发动机转速可使用无级变速变频式控速。the mainframe running speed is stepless frequency conversion.◆时产量主动化学发光法管理。the product quantity can be controlled. ◆很多问题提示卡功能键(如低汽压。无分装、无内塞等)。Multi-failure prompt function (such as infrabar, no filling and no inserting plug etc).    ◆系统自功停电功能模块，对某一道路发生连续式无分装、无内塞情形可系统自功停电。Automatic stop function, if there is no filling, no inner plug in any rail, it may stop automatically.

技术设备性能指标/Main Technical Parameters：

适宜外形尺寸Filling Volume	2-30ml
制造专业能力Productivity	30-60瓶/分  70-100瓶/分30-60bottles/min&nb♛sp;   70-100bottles/min
灌装生产线计算精度Filling Precision	≤±1%
电原 Power Supply	380V/50Hz
旋（轧）盖率Capping Rate:	≥99%
定时上塞率Stoppering rate	≥99%
源Air Supply	1.3 m3/h    0.4-0.8Mpa
输出 Power	2.0 kw
服务器重量Weight	550 kg
外观简约时尚尺寸图Dimension	1800*1000*1500mm
