借款用途与百度百科/Brief Introduction：

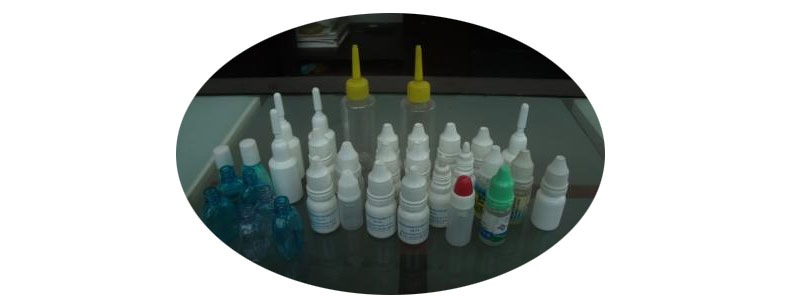

该设备适合于2-30ML各式板材的正方形扁形塑料件或玻璃钢瓶的眼麻醉药罐装、光电烟油等小含量罐装.该设备由高表面粗糙度轴承量程平台可以提供了量程等分盘确定系统上塞上盖;迅访问速度轴承机械齿轮传动可以提供了旋盖头的升降架;恒转矩旋盖;收缩泵计量检验校准罐装;触模屏实操.无瓶不罐装,不加以内塞,外盖.具确定系统正确,机械齿轮传动有序,保护的瓶塞,计量检验校准准.实操简洁等益处。This machine is mainly available to fill eye-drop into various round and flat plastic or glass bottles with the range from 2--30ml.High precision cam provides a regular plate to position, cork and cap; accelerating cam makes capping heads going up and down ;constant turning arm screws caps; creepage pump measures filling volume; and touch screen controls all action. No bottle no filling and no capping. If there is no plug in the bottle, it must not cap until having been detected plug in the bottle. The machine enjoys high position accuracy, stable driving, precise dosage, and simple operation and also protects bottle caps.

结构特征/Characteristic：

◆微电脑主机快速设置、装量精准、操作步骤方便简洁。Man-machine dialogue system setting,visual convenient operation ,accurate filling level。◆台式主机带速可确定有级交流变频调压。the mainframe running speed is stepless frequency conversion.◆制作量手动一定量调整。the product quantity can be controlled. ◆很多种设备故障的提示技能(如低汽压。无灌装生产线、无内塞等)。Multi-failure prompt function (such as infrabar, no filling and no inserting plug etc).    ◆自行停止时效果，对某一发展轨道出现了连续不断无灌装线、无内塞时候可自行停止时。Automatic stop function, if there is no filling, no inner plug in any rail, it may stop automatically.

技术水平参数设置/Main Technical Parameters：

常用样式Filling Volume	2-30ml
生產水平Productivity	30-60瓶/分  70-100瓶/分 30-60bottles/min  70-100bottles/min
灌装线的精密度Filling Precision	≤±1%
电源开关 Power Supply	380V/50Hz
旋（轧）盖率Capping Rate:	≥99%
自功上塞率Stoppering rate	≥99%
氧气减压阀Air Supply	1.3 m3/h    0.4-0.8Mpa
额定功率 Power	2.0 kw
刷卡机总重量Weight	550 kg
造型尺寸规格Dimension	1800*1000*1500mm
